Bottom-Up Estimating: How Detailed Cost Estimates Are Built for Capital Projects

Early in a capital project, cost is a question of analogy and rate curves — enough to size a business case but not enough to let money out the door. Once engineering matures, the estimate has to carry a different kind of weight. It has to be defensible line by line, tied to measurable quantities, and structured so that procurement, cost control, and schedulers can all draw from the same numbers. That is the territory of bottom-up estimating.

Bottom-up estimating builds the project cost from the smallest components upward. Each work item is measured, priced at a unit rate, and rolled into a structured hierarchy until the total falls out at the top. This article covers when the method is appropriate, the three building blocks that determine its accuracy, the step-by-step workflow estimating teams use in practice, and the governance habits that separate a reliable estimate from a plausible-looking one.

When Bottom-Up Estimating Is the Right Method

Bottom-up estimating belongs to the later phases of project definition, once drawings, specifications, and construction methods are detailed enough to measure against. In the AACE International classification framework, it maps onto Class 2 estimates (30–70% design definition) and Class 1 estimates (65–100% design definition). Before that point, the work required to build a full bottom-up estimate outruns the engineering basis it rests on, and the answer looks more precise than it actually is.

The method earns its place when the estimate has to do real work: anchor a sanction decision, support contractor bidding, set a procurement budget, or become the control baseline against which execution is measured. Each of those uses demands traceability from the total back to the individual components. A parametric number cannot survive a vendor negotiation or a claim dispute; a bottom-up estimate can, because every line references a drawing, a quantity, and a priced rate.

The same detail is what makes bottom-up estimates unsuitable earlier. They are expensive to produce, sensitive to scope definition, and misleading when built on partial drawings. A Class 3 deliverable dressed up as Class 2 is worse than an honest parametric estimate because it carries false confidence into funding decisions.

---

The Three Building Blocks: Quantities, Unit Rates, CBS

The accuracy of a bottom-up estimate is determined by three things, and failures almost always trace back to one of them.

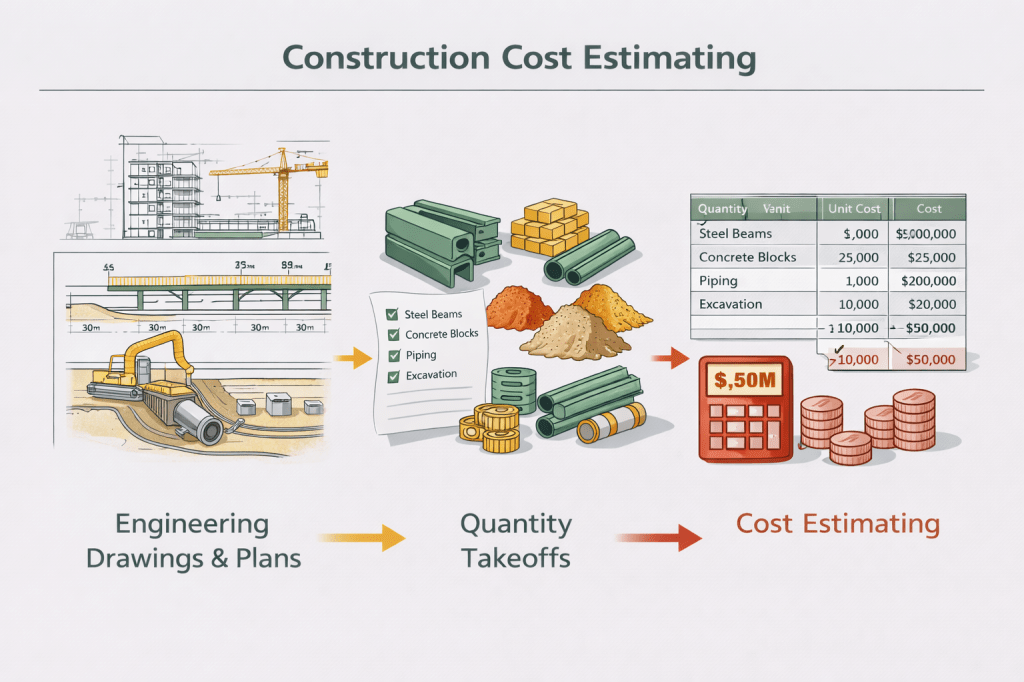

The first is the quantity takeoff. Measured from drawings, BIM models, and specifications, takeoffs express the physical work in its natural units — cubic metres of concrete, tonnes of structural steel, metres of piping, kilometres of cable, cubic metres of earthworks. Modern projects extract most of these directly from the 3D model, but the estimator still owns the reconciliation: what the model counts is not always what the contractor will build, and allowances for waste, splicing, cutoffs, and access have to be applied deliberately rather than by default.

The second is the unit rate. A unit rate bundles materials, labour, equipment, and any subcontracted element into a single price per unit of installed work. A concrete foundation rate, for example, is not just the cost of concrete — it absorbs formwork, reinforcement placement, pour labour, pump hire, and curing. Rates come from historical project databases, recent contractor bid results, vendor quotations, and industry cost guides. A unit-rate library that reflects the organisation’s own delivery history is one of the most valuable assets an estimating team owns, because benchmarked rates expose productivity and supply-chain assumptions that generic guides hide.

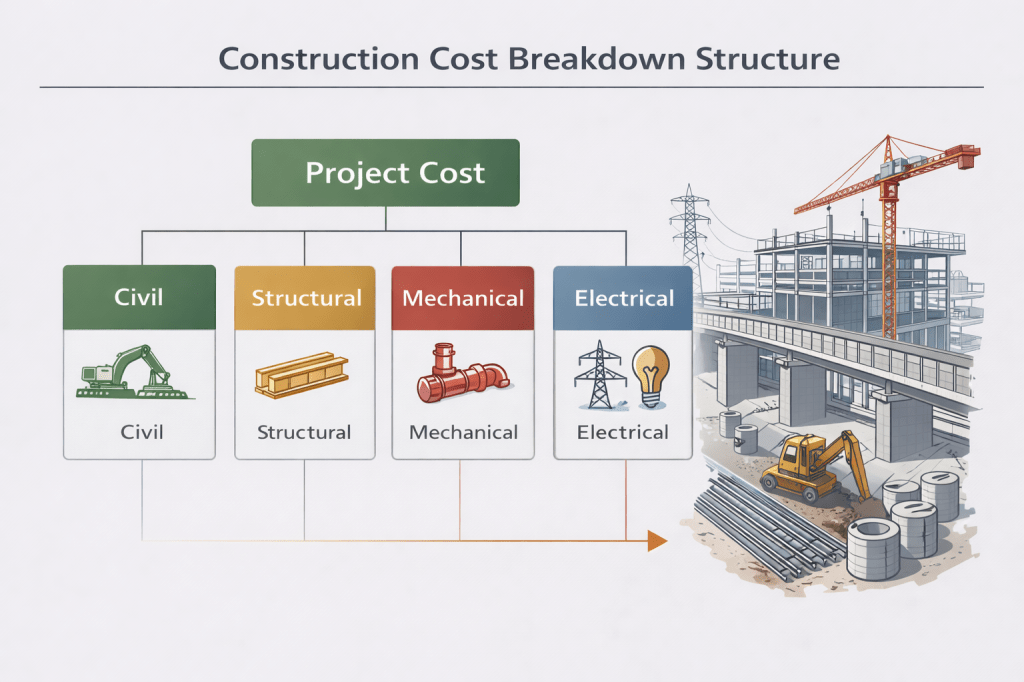

The third is the Cost Breakdown Structure. The CBS is the hierarchy that organises every cost component — site preparation, civils, structural, mechanical, electrical, interior works — and its job is to make the estimate transparent and traceable. A well-built CBS aligns directly with the procurement packages the project will tender, the work packages the schedule will track, and the accounts the cost control system will report against. That alignment is what lets an estimate become a baseline without translation losses.

---

A Worked Example: Quantity × Unit Rate

The arithmetic of bottom-up estimating is unglamorous, and that is the point. A fragment of a typical estimate might look like this:

Work item	Quantity	Unit rate	Line cost
Concrete foundation	2,000 m³	$420 / m³	$840,000
Structural steel	450 t	$3,200 / t	$1,440,000
Electrical cable	18,000 m	$65 / m	$1,170,000

Three line items, $3.45m of direct cost. Multiply that pattern across a few thousand lines and the direct construction cost falls out. The estimate is still only half-built at that point — indirects, overheads, escalation, and contingency sit on top — but the structure is defensible because every figure resolves to a quantity you can count on a drawing and a rate you can point to in the database.

---

The Seven-Step Workflow in Practice

A bottom-up estimate is produced in a predictable sequence, and the order matters because each step depends on the one before it. Teams that try to short-circuit the sequence — pricing before the CBS is finalised, or taking off quantities before scope is locked — tend to rework the whole estimate once the missing input catches up.

The sequence begins with a disciplined scope definition: engineering drawings, specifications, and construction methods reviewed together to confirm what is in and what is out. Incomplete scope is the single largest source of estimate gaps. The CBS is then built to reflect the physical project and to align with the procurement and schedule structures it will eventually feed. With the structure in place, quantity takeoffs are performed against drawings and BIM models, and unit rates are developed from the historical database, adjusted for location, productivity, and market conditions.

Component costs fall out as quantity times rate, and aggregation rolls them up the CBS hierarchy into the direct construction cost. The estimate is then completed by layering indirect costs — project management, site establishment, temporary works, commissioning — followed by contractor overheads and a contingency allowance sized against the residual risk in the estimate basis. That final layer is what turns a priced scope into a fundable project budget.

---

Where Bottom-Up Estimates Go Wrong

Four failure modes recur, and all of them are avoidable. Incomplete quantity takeoffs — missing tie-ins, overlooked minor equipment, cable tray understated — create silent cost gaps that compound across a large estimate. Unrealistic productivity assumptions drive unit rates that look clean in the database but break on a remote site with shift restrictions or unfamiliar labour pools. Scope gaps in the CBS mean entire work packages are never priced, typically at the boundaries between disciplines. Systematically underestimated indirects — the site offices, the temporary services, the commissioning spares — turn a tight direct-cost number into a budget that cannot hold.

Experienced estimating teams protect against these by maintaining a curated unit-rate database, standardising the CBS across projects, running a second-pair-of-eyes review on takeoffs, and benchmarking productivity assumptions against recent actuals. None of these practices are expensive; what they require is estimating discipline held as a standing process rather than a one-off effort before a sanction gate.

---

Key Takeaways

• Bottom-up estimating belongs to Class 2 and Class 1 estimates, where design definition supports measurable quantities and priced unit rates.
• Accuracy depends on three building blocks: quantity takeoffs, unit-rate data, and a Cost Breakdown Structure aligned with procurement and schedule.
• Every line resolves to quantity times unit rate; aggregation up the CBS produces the direct cost, with indirects, overheads, and contingency layered on top.
• The most common failure modes are incomplete takeoffs, unrealistic productivity assumptions, CBS scope gaps, and underestimated indirects — all governance problems, not arithmetic problems.
• A bottom-up estimate is only as useful as the baseline it becomes; alignment with cost control and procurement structures is what lets the estimate survive into execution.

---
