Cost Breakdown Structures (CBS): How to Organize Capital Project Cost Estimates
A Cost Breakdown Structure (CBS) is a hierarchical framework used to organize all costs associated with a project, enabling structured cost estimating, budgeting, and project cost control.
On a capital project of any real size, the estimate is not a single number — it is several thousand cost items rolled up through a hierarchy that the team has agreed to call the budget. The shape of that hierarchy is the Cost Breakdown Structure (CBS). It decides what an estimator can see, what a project controls analyst can report, and what the board is shown at sanction. Get the CBS right and every later step — budgeting, commitment tracking, variance analysis, close-out benchmarking — becomes cleaner by default. Get it wrong and teams spend the rest of the project reconciling numbers that should never have needed reconciling.
This article is a practical guide to designing a CBS: what it is, how it relates to but differs from the WBS, the cost categories it typically carries, a six-step development process, and the design mistakes that show up most often in audit. For the companion question of how the CBS aligns with the Work Breakdown Structure during execution, see the WBS vs CBS article listed at the end.
What a Cost Breakdown Structure Actually Is

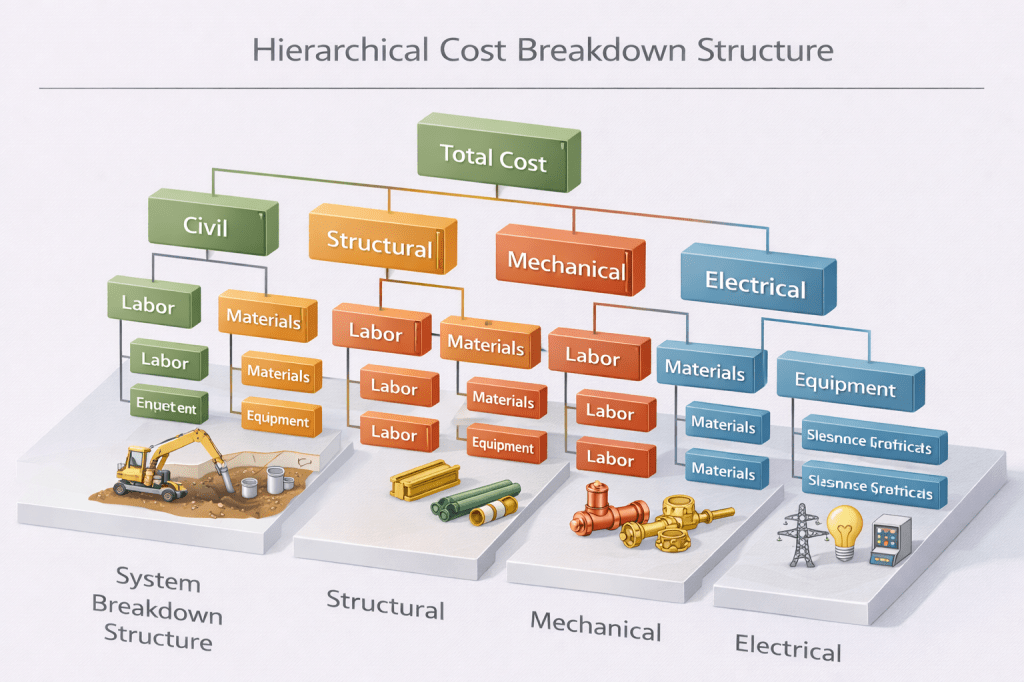

A CBS is a hierarchical framework that decomposes the total installed cost of a project into progressively finer cost elements, each with a unique code and a defined owner. At Level 1 it describes the project in a handful of headline categories — civil, structural, mechanical, electrical, project management, owner’s costs. At Level 2 each category resolves into the subsystems an estimator recognises — earthworks, foundations, drainage, paving under civil, for example. At Level 3 and below, each subsystem resolves into the specific work items that carry unit rates and quantities: excavation, backfill, compaction.
The question the CBS answers is narrow and operational: where exactly is project money being spent, and which account does each dollar belong to? That may sound trivial, but on a project with fifteen contracts and a seven-year schedule, the ability to point at any cost and trace it cleanly up to a board-level category is what separates a controllable project from one whose numbers are endlessly debated.
A minimal three-level CBS looks like this:
| Level | Description | Example |
|---|---|---|
| Level 1 | Major project cost categories | Civil works |
| Level 2 | Subsystems or major components | Foundations |
| Level 3 | Detailed cost elements | Concrete footing |
Why the Structure Matters Beyond Estimating
The CBS is often introduced as an estimating tool, but its value is largest after sanction. A well-designed structure does four things simultaneously. It organises the estimate itself, so interdependent items can be built up, reviewed, and challenged without losing track of what has been included. It gives executives, financiers, and the project sponsor cost transparency in a form they can read — structural versus mechanical versus owner’s costs, rather than an undifferentiated lump sum. It provides the skeleton for cost control during execution, because every commitment, invoice, and forecast posts against a CBS code and rolls up to a variance the team can explain. And it enables benchmarking across projects, because only a consistent CBS allows this project’s $/m2 of building envelope to be compared with the last one’s.
That last benefit is where organisational value compounds. Owners who enforce a standard CBS across their portfolio can answer questions — what does electrical typically cost as a share of direct cost, how does site preparation scale with footprint — that one-off projects cannot. Without a standard structure, every estimate is an island and every benchmark is a negotiation.
How CBS Relates to the WBS
The Work Breakdown Structure organises the scope of work to be delivered; the CBS organises the cost of that work. The two structures are complementary, and on a well-run project they align closely enough that any WBS work package has an obvious mapping to one or more CBS elements. The WBS tells you that “construct foundation” is a deliverable; the CBS tells you that its cost is a combination of concrete, rebar, formwork, labour, and plant, each under its own account.
Misalignment between the two is a frequent source of controls pain. When the WBS is organised by area and the CBS by discipline without a clean cross-reference, every cost report requires manual rework. The practical fix is to design the two structures together and document the mapping explicitly, so that every scope element has a corresponding cost allocation and every cost has a scope owner. The dedicated WBS vs CBS article below goes deeper on how that alignment is maintained.
A Six-Step Framework for Designing a CBS
Designing a CBS is not freeform work. The same sequence applies whether the project is a commercial building, a process plant, or a transmission line, and skipping steps tends to show up as rework three months later.
The first step is to define project scope at a level that lets the cost categories be chosen honestly. A CBS built before scope is stable will either carry empty branches or be missing whole systems. The second step is to identify the Level 1 major categories — typically the construction disciplines plus owner’s costs, project management, and contingency — that will frame the estimate.
The third step is decomposition: breaking each major category into the detailed components that estimators can actually price with quantity takeoffs and unit rates. The fourth step is alignment with the WBS, building the cross-reference between scope packages and cost accounts before either structure is frozen. The fifth step is standardisation against any corporate template, so this project’s data feeds the portfolio benchmark rather than sitting outside it. The sixth step is validation with the multidisciplinary team — cost engineers, project managers, construction planners, and discipline leads — to confirm nothing is missing and nothing is double-counted. A CBS that has not been walked through by all four of those groups almost always has gaps.
A Worked Example and the CBS in Execution
For a commercial building, a practical Level 1 looks like land acquisition, site works, foundations, structural frame, building envelope, mechanical systems, electrical systems, and interior finishes, with project management and owner’s costs carried separately. Each of those resolves into Level 2 and Level 3 detail — site works into excavation and grading, foundations into footings and piles, mechanical into HVAC equipment and installation labour, and so on.
Once construction starts, each terminal CBS element becomes a cost control account. Civil-101 carries earthworks, Structural-201 the steel frame, Mechanical-301 the HVAC installation. Every commitment and invoice posts to one of these accounts, which lets the monthly report compare planned cost, actual cost, and variance at whatever level of the hierarchy the reader needs — a single footing for the superintendent, the civil total for the sponsor, the full project for the board. The same structure feeds earned value, forecasts, and, at project close, the unit-rate benchmarks that the next estimate will lean on.
Design Mistakes That Recur
Four design errors show up repeatedly in CBS audit, and all of them are avoidable at design time. Categories that are too broad — a single “Construction Works” line at Level 1 — make the structure unusable for cost control, because there is nowhere to isolate an overrun. Inconsistent structures across projects in the same portfolio kill benchmarking: if this project’s mechanical includes piping and the last one’s did not, the unit-rate comparison is meaningless. Misalignment with the WBS forces every report through a manual mapping that is slow, error-prone, and often abandoned mid-project. And missing indirect costs — project management, temporary facilities, site supervision, scaffolding, small tools — produce estimates that look competitive on paper and blow out in execution, because the indirect envelope was never properly carried.
The corrective discipline is the same in each case: a CBS template owned at the portfolio level, adjusted project by project rather than reinvented, validated against a standard completeness checklist, and signed off by cost engineering, project management, and finance before it is locked.
Key Takeaways
- A CBS is a hierarchical coding framework that lets any cost on the project be traced cleanly from a work item up to a board-level category.
- Design the CBS alongside the WBS and document the mapping explicitly — misalignment is the most common source of controls rework.
- Use a six-step process — scope, categories, decomposition, WBS alignment, standardisation, team validation — and do not skip validation.
- Carry indirect costs and owner’s costs as first-class CBS branches; burying them inside direct categories masks their true size.
- Standardise the CBS at portfolio level so every project feeds the benchmark rather than producing one-off numbers.
